Motor Speed Pumps
For Cylinder Filling
-LGF1 & LGB1 PUMPS-





SPECIFICATIONS

ASSEMBLED
PUMP UNITS
PUMP
AND
MOTOR
SPEED
RPM
APPROXIMATE DELIVERY OF PROPANE @ DIFFERENTIAL
PRESSURES AND PUMP SPEEDS
SHOWN
MAXIMUM DIFFERENTIAL
PRESSURE
MAXIMUM WORKING PRESSURE¹
NORMAL TIME TO FILL LP GAS TO CYLINDERS IN MINUTES
STANDARD
MOTOR
MOTOR SIZE FOR MOUNTING ON STANDARD BASE
 MODEL
FACTORY
RELIEF
VALVE
SETTING
50 PSI
(354 kPa)
100 PSI
(689 kPa)
PSI
kPa
PSI
kPa
20 LB.
(9 KG)
CYLINDER
100 LB.
(45 KG)
CYLINDER
 HP
MINIMUM FRAME
SIZE
MAXIMUM FRAME
SIZE
 GPM
LPM
GPM
LPM
 LGF1
105 psi
(724 kPa)
 1750
 8.0
 30.3
 6.0
22.7
125
862
350
2413
¾
3
1
 56C
 184C
 LGB1-DM
 105 psi
(724 kPa)
 1750
8.0
 30.3
 6.0
 22.7
 125
 862
 350
 2413
 ¾
 3
 1
 56
 184
 LGF1P
 120 psi
(827 kPa)
 1750
 13.0
 49.2
 10.0
 37.9
 125
 862
 350
 2413
 ½
 2
 1½
 56C
 184C
 LGB1P-DM
 120 psi
(827 kPa)
 1750
 13.0
 49.2
 10.0
 37.9
 125
 862
 350
 2413
 ½
 2
 1½
 56
 184
¹ Maximum rated working pressure is 350 psi (2413 kPa) for LPG and NH3

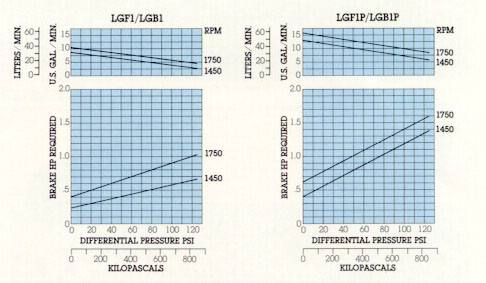

PERFORMANCE
