Flow Range: 2 to 35 GPM (7.5 - 132 LPM)
Maximum Differential Pressure: 150 psig
(10.3 bar)
Maximum Operating Pressure: 400 psi (27.6
bar)
Typical Applications: feed vaporizers,
aerosol filling systems, boiler feed pump, or transfer of volatile liquids.
SPECIFICATIONS
| Specifications | Model | ||||
|---|---|---|---|---|---|
| 9 | 10 | 12 | 13 | 14 | |
| Inlet | 1-1/4" NPT | 1-1/4" NPT | 1-1/2" NPT | 1-1/2" NPT | 1-1/2" NPT |
| Outlet | 1" NPT | 1" NPT | 1" NPT | 1" NPT | 1" NPT |
| RPM-50 Hz
RPM-60 Hz |
(a)
3450 |
2880
3450 |
2880
3450 |
2880
3450 |
2880
3450 |
| Max. Differential Press.
50 Hz PSI (Bar) 60 Hz PSI (Bar) |
-
70 (4.8) |
60 (4.1)
70 (4.8) |
100 (6.9)
75 (5.2) |
125 (8.6)
7.5 (5.2) |
125 (8.6)
7.5 (5.2) |
| Mounting Options
Close Coupled Direct Driven (101) V-belt (103) |
Yes
Yes Yes |
Yes
Yes Yes |
Yes
Yes Yes |
Yes
Yes Yes |
Yes
Yes Yes |
| Direct Mounted Frame (DS/DL) | Yes | Yes | Yes | Yes | Yes |
| Double Seal Option (except C-model) | Yes | Yes | Yes | Yes | Yes |
| Flange Option
1-1/2" x 1" - 300# (except C-model) |
Yes | Yes | Yes | Yes | Yes |
| Impeller Material Opt. | Bronze (standard), Ductile Iron, Stainless Steel | ||||
| O-ring Material Opt:
Teflon®, Viton®, Ethylene-propylene |
Buna N (standard), Neoprene®, Teflon®, Viton®, Ethylene-Propylene | ||||
| Seal Seat Material Options: Ceramic Ni-cast iron, SS304, Tungsten Carbide | Cast Iron (standard), Ni-Resist, Stainless Steel, Tungsten Carbide, Ceramic | ||||
| Temperature (min/max) | -25/225 °F
-32/107 °C |
-25/225 °F
-32/107 °C |
-25/225 °F
-32/107 °C |
-25/225 °F
-32/107 °C |
-25/225 °F
-32/107 °C |
| Maximum Driver | 5 HP
3.7 KW |
5 HP
3.7 KW |
10 HP
7.5 KW |
10 HP
7.5 KW |
20 HP
15 KW |

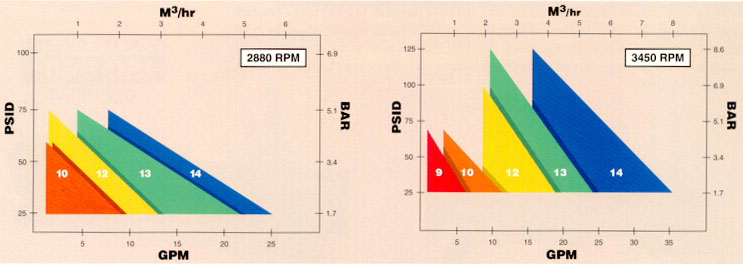

PERFORMANCE
