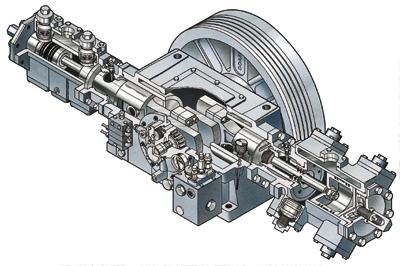

Horizontal Compressors
For Stationary Applications
Piston Displacement: 7.6 to 414 cfm (6.8
- 171 m/hr)
Maximum Working Pressure:
315 - 1665 psia (21.7 - 114.8 bar)
Up to 4500 psig (310.3 bar) on CNG units only
Maximum Horsepower: 60 - 70 Hp (5.6 -
34 Kw)
Typical Applications: vapor recovery,
pressure boosting, tank car unloading, gas blanketing, refrigerant reclaiming.
LPG transfer.
SPECIFICATIONS
| Two-Stage Model | HG602AB | HG602AD | HG602BD | HG602BE | HG602BF | HG602DE | HG602DF | HG602EF | Three & Four Stage Models |
|---|---|---|---|---|---|---|---|---|---|
| Size | 8 x 6 | 8 x 4 | 6 x 4 | 6 x 3.25 | 6 x 2.75 | 4 x 3.25 | 4 x 2.75 | 3.25 x 2.75 | Due to a variety of configurations, consult factory for the capacity of three- and four-stage compressors |
| Displacement CFM (M3/HR)
100 RPM 1200 RPM |
17.2 (29.3)
207 (351.7) |
17.2 (29.3)
207 (351.7) |
9.6 (16.3)
115 (195.4) |
9.6 (16.3)
115 (195.4) |
9.6 (16.3)
115 (195.4) |
4.2 (7.1)
49.8 (84.6) |
4.2 (7.1)
49.8 (84.6) |
4.2 (7.1)
49.8 (84.6) |
|
| Approximate Weight Lbs (KG) | 948.0 (430.0) | 933.0 (423.2) | 853.0 (386.9) | 838.0 (380.1) | 838.0 (380.1) | 823.0 (373.3) | 823.0 (373.3) | 823.0 (373.3) | |
| Water-Cooled Option | WG602AB | WG602AD | WG602BD | WG602BE | WG602DE |
| Single-Stage Model | HG601AX | HG601BX | HG601DX | HG601EX | HG601FX | HG601AA | HG601BB | HG601DD | HG601EE | HG601FF |
|---|---|---|---|---|---|---|---|---|---|---|
| Size | 8 | 6 | 4 | 3.25 | 2.75 | 8 x 8 | 6 x 6 | 4 x 4 | 3.25 x 3.25 | 2.75 x 2.75 |
| Displacement CFM (M3/HR)
100 RPM 1200 RPM |
17.2 (29.3)
207 (351.7) |
9.6 (16.3)
115 (195.4) |
4.2 (7.1)
49.8 (84.6) |
2.7 (4.5)
32.2 (54.5) |
1.9 (3.1)
22.2 (37.3) |
34.5 (58.6)
414 (703.5) |
19.2 (32.7)
231 (392.5) |
8.3 (14.1)
99.6 (169.2) |
5.3 (9.1)
64.0 (108.7) |
3.7 (6.3)
44.4 (75.4) |
| Approximate Weights Lbs. (KG) | 933.0 (423.2) | 868.0 (393.7) | 823.0 (373.3) | 803.0 (364.2) | 803.0 (364.2) | 868.0 (393.7) | 828.0 (375.6) | 803.0 (364.2) | 803.0 (364.2) | |
| Water-Cooled Option | WG601AX | WG601BX | WG601DX | WG601EX | WG601AA | WG601BB | WG601DD | WG601EE |
| Cylinder Bore Data inches (mm) | 8.0 (203.2) | 6.0 (152.4) | 4.0 (101.6) | 3.25 (82.6) | 2.75 (69.9) |
|---|---|---|---|---|---|
| Maximum Working Pressure
PSIA (Bar G) |
315.0 (21.7) | 365.0 (25.2) | 1015.0 (70.0) | 1215.0 (83.8) | 1665.0 (114.8) |
| Head Variance Clearance
Maximum % (HE) % Per Turn (HE) |
38.7
2.1 |
35.8
1.9 |
36
1.7 |
29.7
1.5 |
37
1.7 |
| Displacement CFM (M3/HR)
Crank End Per 100 RPM Head End per 100 RPM Total Per 100 RPM |
8.5 (14.4)
8.7 (14.8) 17.2 (29.3) |
4.7 (8.0)
1.9 (8.3) 9.6 (16.3) |
2.0 (3.4)
2.2 (3.7) 4.2 (7.1) |
1.2 (2.1)
1.4 (2.4) 2.7 (4.6) |
0.8 (1.4)
1.0 (1.7) 1.9 (3.2) |
| Approximate Maximum
Differential Pressure PSI (BAR) |
145.0 (10.0) | 265.0 (18.3) | 590.0 (40.7) | 900.0 (62.1) | 1200.0 (82.8) |
| Frame Data | |
|---|---|
| Stroke Inches (mm) | 3.0 (76.2) |
| Maximum Gas Rod Load lbs (KG) | 7000.0 (3175.2) |
| Maximum Motor HP (KW) | 60.0 (44.7) |
| Maximum Discharge Temperature °F (°C) | 350.0 (176.6) |
| Speed Range | 400-1200rpm |
