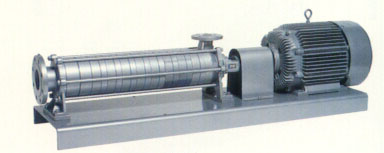

Side Channel Pumps
Flow Range: 7.5
to 185 GPM (28.3 - 700 LPM)
Maximum Differential Head:1150
ft (350 m)
Maximum Operating Pressure:
580 psig (40 bar)
Typical Applications:Cylinder
filling, vaporizer feeding, boiler feed, aerosol and propellant transfer,
bulk filling operations.
-
Multistage side channel design delivers
higher differential pressures.
-
Quiet, smooth transfer even at low
NSPH.
-
Many sealing options to choose from,
including magnetic drive.
SPECIFICATIONS
| Specifications |
Model |
|
B166 |
T166 |
B177 |
| Inlet |
3/4",1" |
1-1/4",1-1/2" |
1-1/4",1-1/2",2",2-1/2" |
| Outlet |
3/4",1" |
1-1/4",1-1/2" |
1-1/4",1-1/2",2",2-1/2" |
| Slip-on Flange Option |
No |
No |
2",2-1/2" |
| Differential Pressure
Range PSI (Bar) |
25-225
(1.7-15.5) |
25-225
(1.7-15.5) |
20-160
(0.7-11) |
| O-Ring Material Option |
Viton®
(standard), Teflon®, Ethylene-Propylene |
Differential
pressure range based on propane at 60°F/16°C

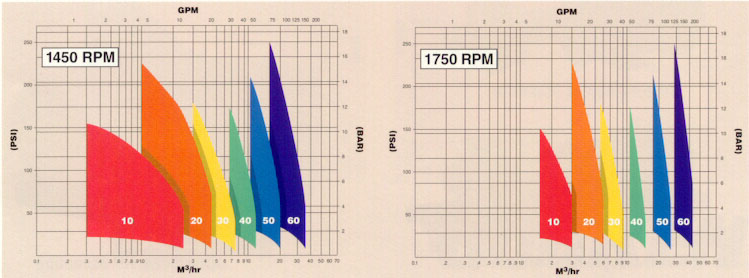

PERFORMANCE
