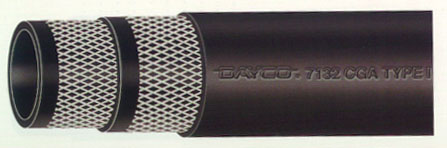

7132 SERIES
LPG HOSES


Tube:
Cover
Reinforcement:
Temperature Range:
Pressure Range:
Safety Factor:		 Black Nitrile
Perforated Black Neoprane/NBR/PVC Blend
Multiple Textile Spirals
-40 ºF  to 180ºF ( Note: LPG should never be elevated above 100 ºF during conveyance)
Max. 350 PSI Working Pressure
5:1
Part
No.
Inner Dia.
(in.)
Inner Dia.
(mm)
Reinf.
Braids
Outer Dia.
(in.)
Outer Dia.
(mm)
Apprx.Wt.Per
100 Ft.(lbs)
Max.Bend Radius (in.)
7132-19352
3/16
4.8
2
0.510
13.0
11
2.0
7132-25354
1/4
6.4
4
0.610
15.0
14
2.5
7132-31354
5/16
7.9
4
0.690
17.5
19
3.0
7132-38354
3/8
9.5
4
0.760
19.1
22
3.5
7132-50354
1/2
12.7
4
0.937
23.8
30
4.5
