Solenoid Valves

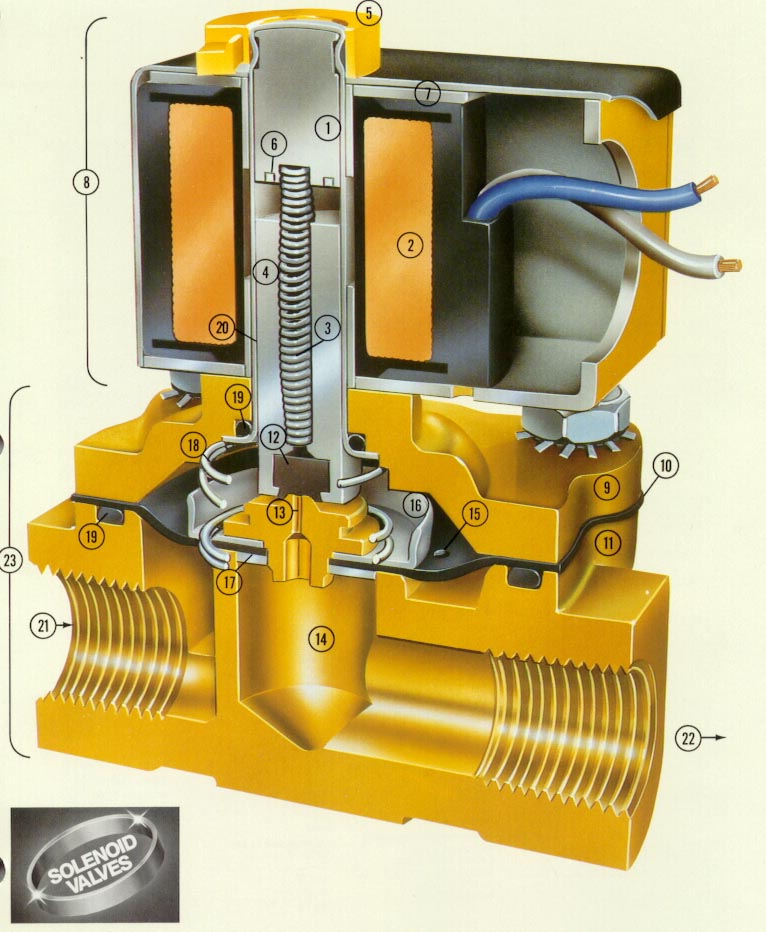

UNIT SOLENOID 1. Pole Piece 2. Coil 3. Spring 4. Plunger 6. Shading Ring 7. Magnetic Frame Assembly 8. Unit Solenoid

UNIT VALVE   5. Gold Ring   9. Bonnet 10. Diaphragm 11. Valve Body 12. Disc 13. Pilot Orifice 14. Main Orifice 15. Bleed Orifice 16. Diaphragm Cup 17. Diaphragm Support Washer 18. Diaphragm Return Assist Spring 19. O-ring Seal 20. Plunger Tube 21. Inlet 22. Outlet 23. Unit Valve
